ROPER STEAM VELOCIPEDES

Roper's Steam Velocipede of 1867, now at the Smithsonian
Sylvester H. Roper invented the motorcycle in 1867, in Boston, around the same time Louis-Guillame Perreaux also invented the motorcycle, in Paris.  Each of these inventions was created independently, and as small, light, portable steam engines were almost nonexistent at that date, each required the creation of its own motive power unit.  These are remarkable achievements with no historic precedent, barring the very first powered vehicle of all, the Cugnot steam tricycle, built a century prior to either Steam Velocipede. Technology progressed slowly in the 1700s!
Roper with his first Steam Carriage of 1863
Sylvester Roper, born in 1823, was a singularly brilliant individual, patenting sewing machines, machine tools, furnaces, shotguns, fire escapes, as well as building his steam-powered two, three, and four-wheelers, which he did not patent.  His Steam Velocipede was created a few years after building his first Steam Carriage (ie, automobile) in 1863, in the midst of America's Civil War, while he was stationed at the Springfield Armory.

His first Velocipede of 1897 used a very small steam engine, which Roper built himself. The engine was suspended from a forged iron frame -purpose-built for the machine- on spring steel strips, which absorbed many of the road shocks typical of the 'boneshaker' bicycle chassis.  The front fork was also iron, and wheels were wooden with steel 'tires', 34" in diameter; water for the boiler was carried inside the rider's saddle!  The engine had two pistons of 164cc capacity, each connected by a crank-arm and rod to the rear wheel.  The total engine capacity was 328cc.
Roper's patented Repeating Shotgun
The rider controlled his Velocipede by rotating the handlebars forward - and thus the twistgrip throttle was born, decades before Glenn Curtiss claimed the same with his first motorcycles, which was again before Indian received general credit for this excellent idea!  To stop the Roper, the rider rotated the handlebars backward, which pressed a steel 'spoon' onto the front wheel.  Water was automatically fed from the seat to the boiler via a water pump actuated by engine rotation. The small firebox at the bottom of the motor was fed with charcoal, and a pressure gauge mounted on the steering-head kept the rider apprised of power, and danger.
Roper with another of his Steam Carriages, ca.1867
The contraption worked, although perhaps not as well as his Steam Carriages, which had space for much larger engines, and carrying capacity for water and fuel, which meant a longer travel range.  The harsh ride of the wooden wheels with steel tires must have become tiresome as well, in contrast to his four-wheelers which used buggy springs for rider comfort...Roper postponed work on his Velocipedes for 15 years.

Drawings for the second Steam Velocipede
In the intervening years, bicycle design had undergone a sea change, as in 1880, the Rover Safety Bicycle was invented, and rubber tires came into general use.  These improvements must have spurred Roper to take up two wheels again in 1894, when Albert Augustus Pope commissioned Roper to make a new Steam Velocipede using a modified version of Pope's popular 'Columbia' safety-bicycle frame, with pneumatic 'Dunlop' tires.   The intention of Pope (who by 1911 manufactured his own motorcycles) was to use the machine as a cycle-pacer on the incredibly popular bicycle racing velodromes of the day.

Roper with his Steam Velocipede in 1895/6
 Roper designed a new steam unit weighing about 125lbs, making an all-up weight of the machine 150lbs. The bump absorption capacity of air-filled tires made it possible to solidly mount the engine to the frame, in the 'right' location, with the weight low and centrally between the wheels.  A single cylinder and piston of 160cc drove the bicycle via a long connecting rod, and a short crank at the rear wheel. Steam pressure was kept between 160 and 225psi (for hills), although the engine was tested to 450psi. The machine was good for at least 40mph, and carried enough coal for a 7-mile trip.
The new machine was compact, light, and very fast, and Roper, pleased with his results, put in quite a few miles on his steamer, regularly riding a round-trip of 7 miles between his home in Roxbury to the Boston Yacht ClubAmerican Machinist magazine noted, "the exhaust from the stack was entirely invisible so far as steam was concerned; a slight noise was perceptible, but not to any disagreeable extent."

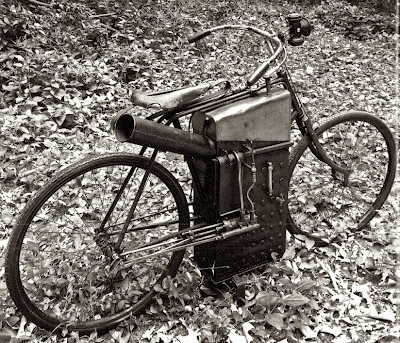

The 1895 Roper Steam Velocipede, currently in private hands.
Roper was happy to demonstrate his steam vehicles to the public, at fairs and exhibitions, and claimed his latest Velocipede, or 'Self Propeller' as he called it, could "climb any hill and outrun any horse."  On June 1st, 1896, he rode to the Charles River Speedway in Cambridge, to show the local bicycle racers his new cycle-pacer.  Several cyclists agreed to keep pace with him on the banked 1/3 mile cement track. The Boston Globe of June 2 reported, "The trained racing men could not keep up with him and he made the mile in two minutes, one and two-fifths seconds.  After crossing the line, Mr.Roper was apparently so elated that he proposed making even better time and continued to scorch around the track.  The machine was cutting out a lively pace on the back stretch when the men seated near the training quarters noticed the bicycle was unsteady. The forward wheel wobbled badly...", and it seems track-side viewers rushed out to catch the slowing rider, who had died of a massive heart attack, while riding at age 73.  As Roper controlled the throttle with a cord around his thumb, steam power shut down as he relaxed into the arms eternal night, having proved himself the first motorcycle Speed Merchant.
Roper's son Charles, wheeling the Steam Cycle from the Cambridge track after his father's death.
Both of Roper's Steam Velocipede exist; the First Motorcycle is on permanent display in the Smithsonian Museum, the second is privately held, originally in the hands of Roper's son Charles.  It is rumored this machine will soon come up for sale...watch this space.

For an educational look at what it takes to build a steam cycle, visit the Flash Fabrications website!
